S203A-WL Vertical FOV 12°
9m
Range sensor
4s
Restart timeout
4m/s
Max target speed
12°
Vertical plane
RCS
Selectable
Advanced FOV equipped with a vertical angular coverage of 12° and an extended range of 9m, ideal for industrial environments with narrow and limited spaces.
Field of view
0 - 5m
[min. set distance: 0.2m]
Horizontal Plane: 10-100°
Vertical Plane: 12°
5 - 9m
Horizontal Plane: 10-40°
Vertical Plane: 12°

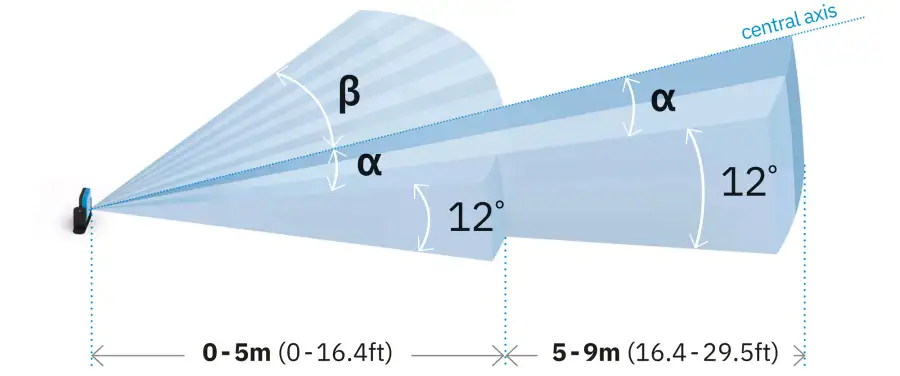

Asymmetrical FOV
[0-5m] α: 0°-50° β: 0°-50°
[5-9m] α: 0°-20° β: 0°-20°
[0-5m] α: 0°-50° β: 0°-50°
[5-9m] α: 0°-20° β: 0°-20°

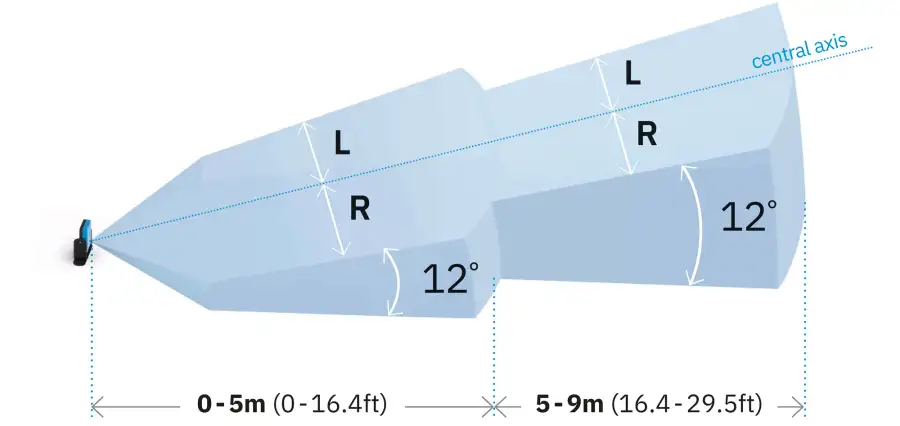

Corridor FOV
[0-5m] L + R ≥ 20cm
[5-9m] L + R ≥ 30cm
[0-5m] L + R ≥ 20cm
[5-9m] L + R ≥ 30cm
Four independent detection fields
Four independent detection fields with freely adjustable angles with a maximum total distance of 9 m. The aperture of each field is dynamically adjustable in 5° increments over a range of 10° to 100° (between 0.5 and 5 m) and over a range of 10° to 40° (between 5 and 9 m).
Asymmetrical FOV
α ≠ β
α ≠ β
Corridor FOV
α = β = 50°
α = β = 50°
Safety functions
Access protection
First safety function: a 3D, variable aperture virtual barrier with up to four different detection fields, providing a secure signal to control machinery.
Restart prevention
Second safety function: safe presence sensing to prevent machinery from starting as long as operators are in dangerous areas.
Quickly learn how to set up our products
These short tutorials are ready to unveil every aspect of our Smart Sensors. Watch, learn, and become an expert in no time.
Four configurable detection fields
Each sensor supports up to four different detection fields in 3D, each with a different safety output.
Advanced FOV
The S203A-WL sensor has advanced field of view, i.e. the user can choose whether to use a symmetrical FOV, an asymmetrical FOV (asymmetric angles with respect to the central axis of the sensor) or a corridor FOV (with the sides cut off where required by the application)
Vertical angular coverage: 12°
The S203A-WL has a vertical angular coverage of only 12° (instead of 20° in previous sensors), making it the most adaptable sensor for Autonomous Guided Vehicles (AGVs).
Static object detection
This option allows to detect static objects in the area where the restart prevention safety function is activated. This prevents the mobile device from restarting when there are obstacles in the area.
Speed
The S203A-WL supports higher speeds: it supports up to a maximum of 4 m/s. This feature is required by sectors like earth moving, railway, mining and agriculture.
Selectable RCS
The RCS of the target can be selected for human safety or collision with other object. The custom target detection is a safety function that allows detecting the access of one or more objects with specific RCS values.
Robust to environmental disturbances
A radar sensor is extremely resistant to environmental disturbances. This makes it possible to work without false alarms in environments where there is smoke, dust, water and machining swarf.
Restart timeout
4s is the minimum time needed to perform the Restart Prevention safety function.
Technical details
| SMART SENSOR 200 SERIES (S203A-WL) | |
| Frequency | Millimeter waves V-band: 60 GHz |
| Connectors | Two 5-pin M12 connectors (1 male and 1 female) |
| CAN bus termination resistance | 120 Ω (not supplied, to be installed with termination connector) |
| Power supply | 12 V dc ± 20%, through control unit |
| Power consumption | 2.2 W |
| Degree of protection | IP67 |
| Operating temperature | From -30 to +60 °C (-22 to +140 °F) |
| Case material | Sensor: PA66 (front) + Aluminum (back) | Bracket: PA66 and glass fiber (GF) |
Dimensions
